VERSION 4 STANDARD KIT FEATURES

Plug & Play Design

No wire splicing, crimping, alligator clips etc.

16 Total Trigger Inputs

Customize your shaker experience and when it triggers

Shake Intensity Knob

Get the perfect shake from a gentle rumble to a jackhammer

Upgradeable Module Slot

Easily upgrade to the premium version just by installing the premium upgrade module

On Board Rectifier

Power is rectified from the xmfr secondary

New Chip & Program Code

Now optimized to include magnets and motors as triggers

Full Specifications

Operating Voltage:   12vdc
Maximum Amps:   3.0
# Of Triggers:   16
Power Supply:   On Board Rectifier

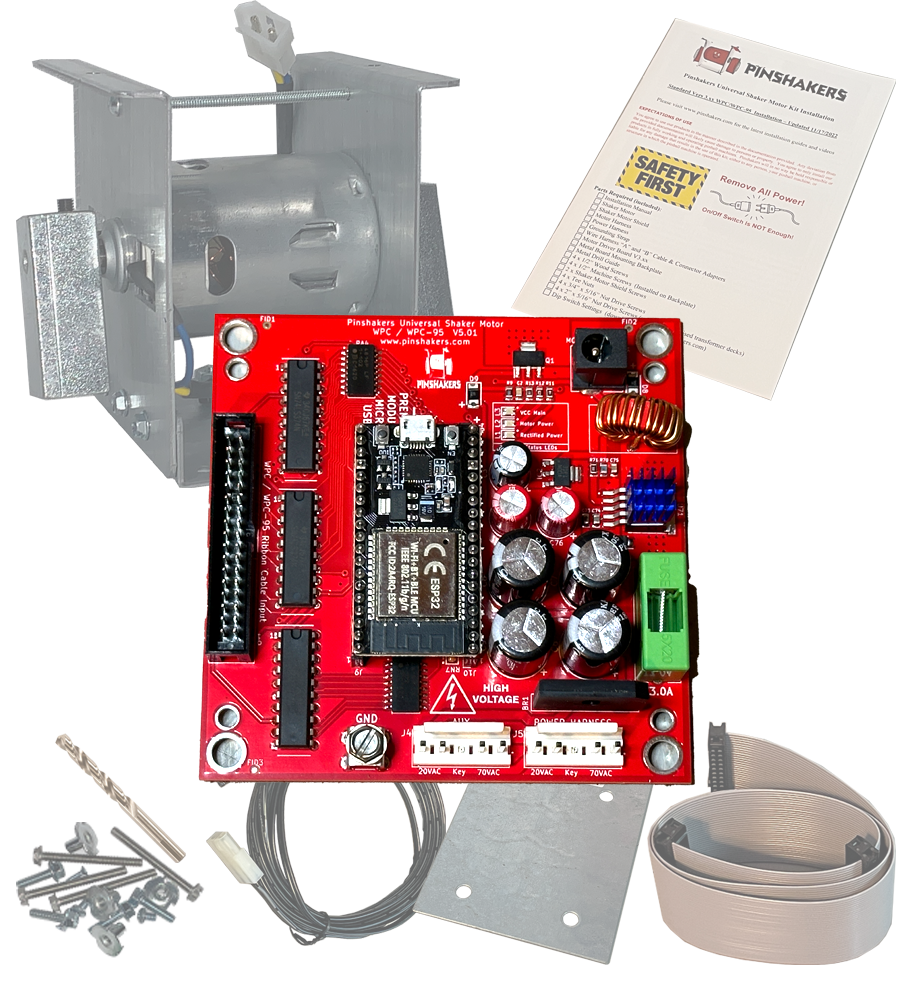

What's Included

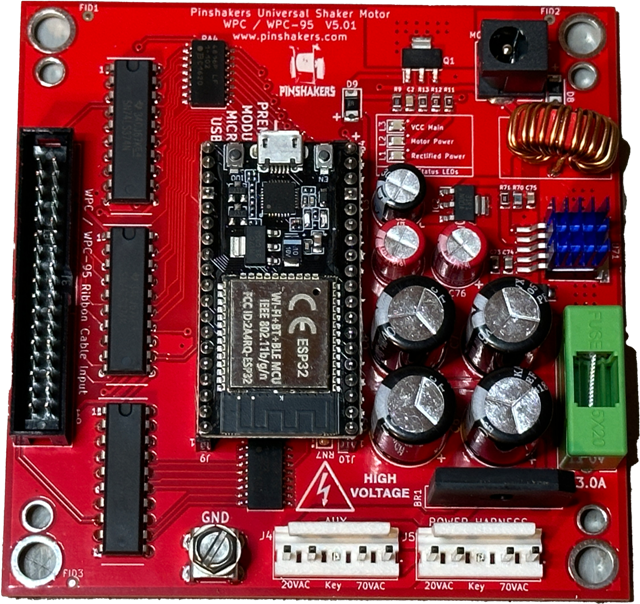

• Motor Driver Board
• Shaker Motor & Shield
• Power Harness
• Motor Harness
• Custom Ribbon Cable
• 17/64" Wood Drill Bit
• All Required Hardware
• Custom Metal Drill Guide
• Detailed Installation Guide

feature img
Product Image
feature img

VERSION 4 PREMIUM KIT FEATURES

Plug & Play Design

No wire splicing, crimping, alligator clips etc.

22 Total Trigger Inputs

Add even more customization with 6 additional trigger inputs

Fused Protection

On Board Fuse Protects Against Over Current Damage

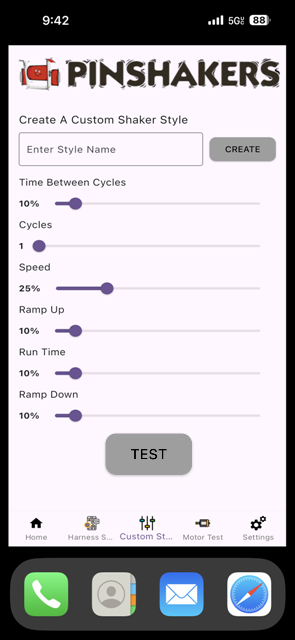

Bluetooth Connection Module

Connect your android device to customize your shaker experience

On Board Rectifier

Power is rectified from the xmfr secondary

On Board Chip & Program Code

Controls all aspects of the shaker

Full Specifications

Input Voltage:   16-25vac
Maximum Amps:   3.0
# Of Triggers:   22
App Requirements:   Android Phone or Tablet with a Minimum of:
• Android 5.0 (API level 21) 2015
• Bluetooth v4.2
Power Supply:   On Board Rectifier

What's Included

• Motor Driver Board
• Shaker Motor & Shield
• Power Harness
• Motor Harness
• Custom Ribbon Cable
• Premium Bluetooth Module
• 17/64" Wood Drill Bit
• All Required Hardware
• Custom Metal Drill Guide
• Detailed Installation Guide

feature img
feature img
feature img
feature img
feature img
feature img
feature img

Why Choose Pinshakers

Top Notch Support

We aim to serve our customers with fast and comprehensive phone, text, or email support.

Best Pricing

Compared to similar mods out there, we feel our prices are very competitive considering everything you get with our kits.

2 Year Warranty

We offer a 2 year warranty on the motor driver board, wire harnesses, harness adapters, and power supply.

Independantly Powered

With the on board power rectifier circuit that draws power directly from the transformer secondary, no power is drawn from the pinball machine's power driver board.

What Are People Saying About Pinshakers

Compatibility List

Williams/Bally WPC

Black Rose
Bram Stoker's Dracula
Corvette
Creature from the Black Lagoon
Demolition Man
Dirty Harry
Doctor Who
Fish Tales
Funhouse
Gilligan's Island
Harley Davidson
Hurricane
Indiana Jones: The Pinball Adventure
Indianapolis 500
Jack·Bot
Johnny Mnemonic
Judge Dredd
No Fear: Dangerous Sports
Popeye Saves the Earth
Red & Ted's Road Show Star Trek: The Next Generation
Terminator 2: Judgment Day
The Addams Family
The Addams Family Special Collectors Edition
The Flintstones
The Getaway: High Speed II
The Machine: Bride of Pin·bot
The Party Zone
The Shadow
Theatre of Magic
Twilight Zone
White Water
WHO dunnit
World Cup Soccer

Williams/Bally WPC-95

Attack from Mars
Cactus Canyon
Cirqus Voltaire
Congo
Junk Yard
Medieval Madness
Monster Bash
NBA Fastbreak
No Good Gofers
Safe Cracker
Scared Stiff
Tales of the Arabian Nights
The Champion Pub

FAQ

Yes they can, the kits are interchangeable between all of the other WPC/WPC-95 machines in the compatibility list without the need to purchase any additional parts.

No, we are not a retailer for just the shaker motor. You must purchase one of our products that includes the motor driver board along with the shaker motor.

We have done an extensive amount of testing with several different pinball machines. In addition, we have stress tested the motor driver board by pulsing the motor on/off continuously for several hours in order to monitor component temperatures. There have been no issues with overheating components and no issues with the motor or driver board causing interference or damage to any of the circuit boards or any other components of the pinball machines we have tested.

One of the major reasons we believe this kit is completely safe is that we chose not to run the motor using power from the pinball machine's driver board. This keeps the motor isolated from the machine's power supply, only connected via logic outputs and a common ground.

Please keep in mind that the machines we have tested are in good working condition with no grounding issues or hacked circuit boards. It is impossible to predict the outcome of using our shaker motor kit, or any third party mod for that matter, in a machine that has pre-existing problems such as grounding issues, reset problems, loose wires, cold solder joints, hacked circuit boards etc. You are installing this shaker motor kit at your own risk, Pinshakers assumes no liability for any damage that may occur to your machine.

With Version 4, upgrading from a standard to a premium kit is accomplished by installing the premium upgrade module which can be purchased seperately. Simply install the upgrade module on your standard motor board and change the selection switch from "standard" to "premium" and you now have all of the features of a premium kit!

Yes, you can even have all 16 triggers, (22 with the premium board), set to on if you wish. The driver board program will run the motor on a first come, first serve basis. Multiple inputs at the same time will not hurt the driver board or the motor.

Yes, we have updated the hardware and software on the version 2 boards to allow for magnets and motors. The shaker will trigger as soon as the magnet or motor first comes on.

This is a very valid question. You have to understand that other kits out there are built to work with machines that were pre-designed by the manufacturer to have a shaker motor installed. So all of the computer control of the shaker is built into the CPU. So all you need with those machines is the hardware and a basic circuit board that does nothing more than provide voltage filtering.

Our kit however, is built to work on machines that weren't designed to have shaker motors installed. So all of the programming and control of the motor is done with our own custom made driver board. The board may look small and simple at first glance, however there is a lot going on with that little device. There is also an IC chip that has a very complicated program that we developed specifically to safely operate the motor in an environment that wasn't meant to have one.

Additionally, we have chosen to include high quality parts with our kit. Everything is made from high quality materials. We have installed this kit in all of our own machines, and we want it to run safely and reliably for many years to come.
